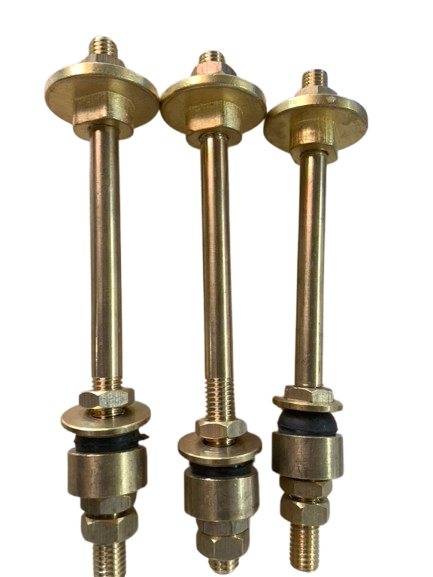

Rod
Roll over image to zoom in
Contact Us
| Specification | Details |
|---|---|
| Type | Brass Bushing Rod / Transformer Rod Assembly |
| Application | Used in oil-filled distribution and power transformers for electrical connection between winding and external terminals |
| Material | High-conductivity Electrolytic Brass (CuZn39Pb3 or equivalent) |
| System Voltage | Suitable for up to 33 kV |
| Mounting Type | Through-bushing or terminal mounting |
| Operation | Static electrical connection (non-moving part) |
| Connection Type | Threaded both ends for nut tightening and secure connection |
| Standards Compliance | IS 3347, IS 7421, IEC 60137 |
| Finish Type | Natural polished brass / Tin-plated finish |
| Specification | Typical Ratings |
|---|---|
| Rated Voltage | Up to 33 kV |
| Current Carrying Capacity | 400 A – 1250 A (based on size and design) |
| Contact Resistance | ≤ 50 µΩ |
| Insulation Resistance | ≥ 1000 MΩ (with insulating bush) |
| Temperature Range | -20°C to +120°C |
| Power Frequency Withstand Voltage | 28 kV / 36 kV |
| Short-Time Current Capacity (1 sec) | 10 kA – 25 kA |
| Tensile Strength | ≥ 350 N/mm² |
