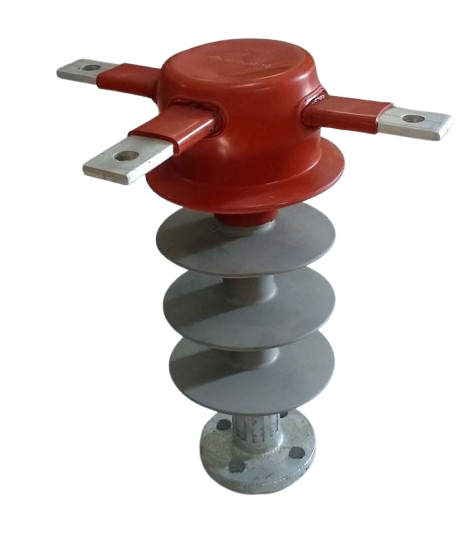

MVt Kit
Roll over image to zoom in
Contact Us
| Specification | Details |
|---|---|
| Type | MV (Medium Voltage) Tee Connector / Separable Connector |
| Application | Used to connect medium voltage (MV) cables to switchgear, transformers, RMUs, or junction boxes |
| System Voltage | 11 kV / 22 kV / 33 kV (3 Phase, 50 Hz) |
| Connector Type | Separable Tee Type (Plug-in) Connector |
| Insulation Type | EPDM / Silicone Rubber (High-Grade Elastomer) |
| Conductor Compatibility | Aluminium or Copper Conductors |
| Mounting Type | Plug-in type connection to bushing or interface (as per EN 50180 / 50181) |
| Conductor Range | 25 mm² – 400 mm² |
| Operation | Provides screened and fully insulated connection under load or energized conditions |
| Standards Compliance | IEC 60502-4, IEEE 386, CENELEC HD 629.1.S2 |
| Design Interface | Type C / Type A / Type B as per standard configuration |
| Installation Location | Indoor / Outdoor (with screened protection) |
| Specification | Typical Ratings |
|---|---|
| Rated Voltage (Um) | 12 kV / 24 kV / 36 kV |
| Rated Current | 630 A continuous (up to 1250 A optional) |
| Short Time Current (1 sec) | 16 kA – 25 kA (depending on design) |
| Power Frequency Withstand Voltage | 42 kV (Dry) / 36 kV (Wet) for 11kV system |
| Lightning Impulse Withstand Voltage | 95 kV – 170 kV peak |
| Partial Discharge | < 10 pC at 1.73 × U₀ |
| Dielectric Strength | ≥ 25 kV/mm |
| Screen Resistance | < 5000 Ω/m |
| Creepage Distance | ≥ 25 mm/kV |
| Insulation Resistance | ≥ 1000 MΩ at 5 kV DC |
