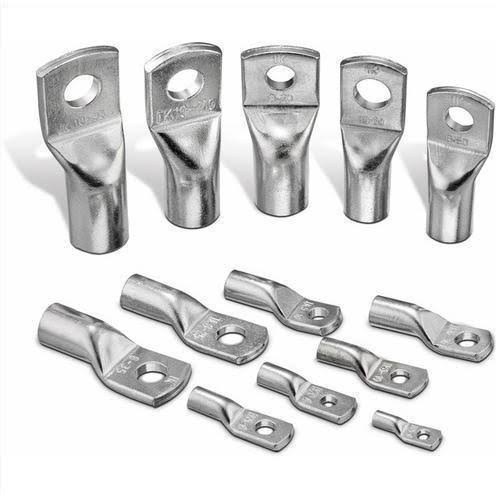

Aluminium Lug
Roll over image to zoom in
Contact Us
| Specification | Details |
|---|---|
| Type | Aluminium Compression / Crimping Type Lug |
| Application | Used for terminating aluminium conductors in transformers, switchgear, control panels, and cable joints |
| Material | High-conductivity aluminium (99.5% pure ETP grade) |
| Cable Compatibility | Suitable for aluminium conductors from 10 mm² to 1000 mm² |
| Operation | Crimped connection using standard hydraulic or mechanical tools |
| Mounting Type | Bolt-on terminal connection |
| Temperature Range | -20°C to +90°C (continuous) |
| Conductor Type | Suitable for solid, stranded, or sector-shaped aluminium conductors |
| Standard Compliance | IS 8309, BS 6121, DIN 46235, IEC 61238 |
| Finish Type | Bright tinned or natural aluminium finish |
| Specification | Typical Ratings |
|---|---|
| Rated Voltage | Up to 33 kV |
| Current Carrying Capacity | As per conductor cross-section (e.g., 16 mm² – 1000 mm²) |
| Electrical Conductivity | ≥ 61% IACS |
| Contact Resistance | ≤ 50 µΩ |
| Tensile Strength | ≥ 80 N/mm² |
| Thermal Stability | Suitable for temperature rise up to 120°C during overload |
| Pull-Out Strength | Exceeds requirements of IS 8309 |
| Corrosion Resistance | Enhanced with tin plating (optional) |
