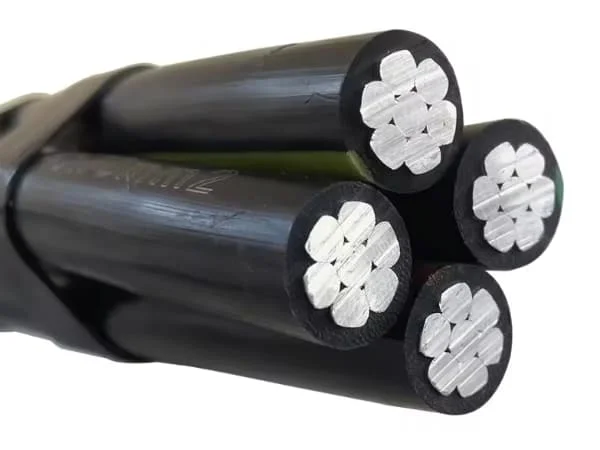

ABC Cable
Roll over image to zoom in
Contact Us
| Specification | Details |
|---|---|
| Type | Aerial Bunched Cable (ABC) |
| Application | Used for overhead power distribution in low and medium voltage networks |
| System Voltage | LV: 1.1 kV / MV: 11 kV or 33 kV (as per configuration) |
| Conductor Material | Aluminium (Stranded, compacted, circular) |
| Insulation Material | XLPE (Cross-Linked Polyethylene) / HDPE (High-Density Polyethylene) |
| Core Configuration | 2 Core / 3 Core / 4 Core + 1 Neutral (Messenger Wire optional) |
| Messenger Wire (Optional) | Insulated or bare aluminium alloy wire for mechanical support |
| Frequency | 50 Hz |
| Conductor Standard | IS: 8130 / IEC 60228 |
| Insulation Standard | IS: 7098 (Part I & II), IEC 60502 |
| Installation Type | Overhead (pole-mounted or wall-supported) |
| Specification | Typical Ratings |
|---|---|
| Rated Voltage (U/U₀) | 1.1 kV / 11 kV / 33 kV |
| Current Rating | As per IS 398 (Varies with conductor size) |
| Insulation Resistance | > 1000 MΩ·km at 27°C |
| Dielectric Strength | 3.5 kV (for 1.1 kV system) |
| Conductor Resistance | As per IS 8130 (depends on cross-section) |
| Operating Temperature | -20°C to +90°C |
| Short Circuit Temperature | Up to 250°C (for 1 sec) |
| Power Frequency Withstand Voltage | 3.5 kV (1 min for LV systems) |
| Lightning Impulse Withstand Voltage | 75 kV (for 11kV systems) |
